TSH-2269S Double Thread Seated Type Mackay Stitcher

TSH-2269S Double Thread Seated Type Mackay Stitcher

1. Equipped with a special horn designed for OPANKA stitching of little shoes, like children shoes.
2. Machine thought to stitch the bottom of the shoes in an innovative way.
3. Double feeding: foot and needle ensure a constant length of the stitch.
4. Increase in productivity. Improvement in quality of stitching.
5. Using electronic speed motor speed can be flexible, stop the needle position by computer control.

Product Details



TSH-2269S Double Thread Seated Type Mackay Stitcher

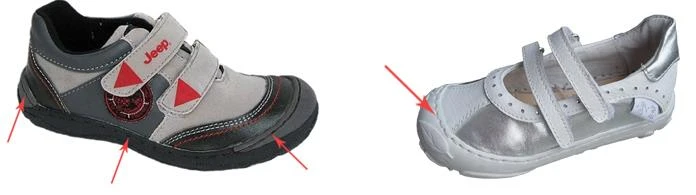

TSH-2269 Double thread seated type inseam sewing machine is equipped with a special horn designed for OPANKA stitching of little shoes, like children shoes.

Machine thought to stitch the bottom of the shoes in an innovative way: the technology of the floating horn and of the hook inside the shoe allows evident benefits

Double feeding: foot and needle ensure a constant length of the stitch

The machine doesn't need hook-needles but needles with eye, which let to pass the stitching again without tearing or cutting the thread

It's possible to begin and finish the stitching close to the heel on pre-trimmed soles

The machine is very easy to be used by female operators

Increase in productivity. Improvement in quality of stitching

Using electronic speed motor speed can be flexible, stop the needle position by computer control.


Model:

TSH-2269-S Double thread seated type inseam sewing machine. Adopt S type horn,suitable for side seaming of sports shoes and leisure shoes and upper sewing of toe part。

TSH-2269-SS Double thread seated type inseam sewing machine. Adopt SS type horn,SS type horn is smaller than S type horn, suitable for side seaming of baby shoes and upper sewing of toe part.

TSH-2269-SC Double thread seated type inseam sewing machine. Adopt SC type horn,suitable for side seaming of special angle.

TSH-2269-A  Double thread seated type inseam sewing machine. Adopt A type horn,suitable for side seaming of sports shoes, leisure shoes, leather shoes, especially for jackboots.



Model

Horn type

Usage

Stitches

TSH-2269-S



using S type horn, suitable for side seaming of sports shoes and leisure shoes and upper sewing of toe part。





TSH-2269-SS



using SS type horn suitable for side seaming of baby shoes and upper sewing of toe part





TSH-2269-SC



using SC type horn for suitable for side seaming of special angle.





TSH-2269-A



Using A type horn, suitable for side seaming of sports shoes, leisure shoes, leather shoes, especially for jackboots.





Technical Data:



Model

Sewing speed

Stitch

Sewing thread

Stitch length

Needle spacing

Sewing needle

Motor

Net weight

Gross weight

Packing parameter

TSH-2269

Stepless speed regulating

Double lock

Compound thread

3-10mm

1.5-6mm

CP*5

(23#25#)

220V/750W 1-phase 50-60Hz

380V/750W 3-phase 50-60Hz

230Kg

320Kg

136*78*156cm

(L*W*H)




Welcome to shop online for the best tsh-2269s double thread seated type mackay stitcher for sale from our factory. We are one of the professional manufacturers and suppliers of various sewing machines and the machine parts in China. Enjoy the unmatched prices and services with us now.
