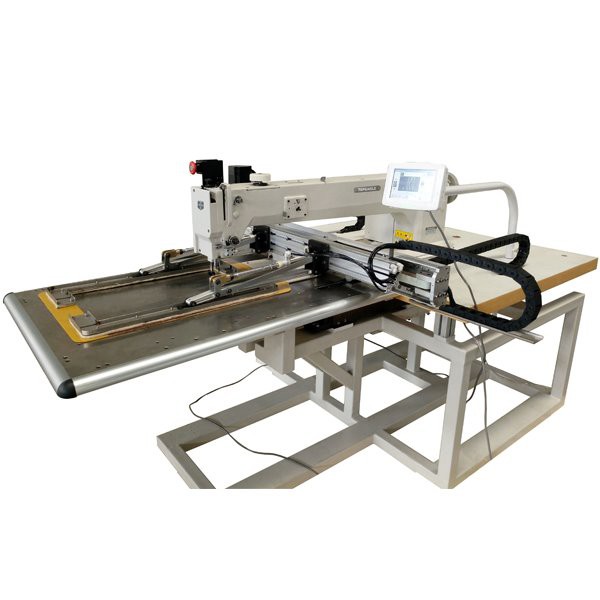

TOPEAGLE TPS-367-5050 Container bag sewing machine:
TPS-367-5050 Container bag sewing machine is one of the TOPEAGLE electronic extra heavy duty pattern sewing machine series for goods of thick material. It is equipped with high-precision servo control system and high-performance servo motor drive, which can set up arbitrary sewing model in prescribed range. It use 5-time large rotary hook, has a large amount of core yarn, to reduce the times of bobbin changing. and the sewing efficiency can also be ensured when 1200D high strength polyester sewing thread. The container bag sewing machine is designed with rigorous structure, precise and reliable transmission, it can set It can set various parameters such as pattern, needle number, thread length and so on through random programmer. The input, storage, modification and invocation of patterns are convenient , and various patterns of pre-programmed programs can be input through the USB interface for sewing. At the same time, the machine adopts Japanese SMC pneumatic components and Taiwanese silver guide rail, which greatly reduces the cost of maintenance and prolongs the service life of the machine.
TOPEAGLE TPS-367-5050 container bag sewing machine application:
TOPEAGLE TPS-367-5050 container bag sewing machine is special design for the industries such as big bags, container bags, sling bags, tents, etc.
TOPEAGLE TPS-367-5050 container bag sewing machine parameter:
|
Model |
TPS-367-5050 |
|
Optional scope of sewing |
X-axis(Left/right)Max: 500mm ,Y-axis(forward/backward)Max: 500mm |
|
Max.sewing speed |
1400rpm |
|
Set speed |
100-1200rpm |
|
Stitch length |
0.1-12.7mm |
|
Needle bar stroke |
56mm |
|
Needle |
DDX1 230 |
|
Sewing thread |
600D-1200D |
|
Presser plate lifting |
Outer pressure plate: 70mm(Pneumatic),Middle pressure foot: 20mm |
|
Thread trimming mode |
Mechanic thread cutting |
|
Shuttle |
5 times large shuttle hook |
|
Control system |
DAHAO SC44 |
|
Power |
220V-240V 1Phase |
TOPEAGLE TPS-367-5050 container bag sewing machine feature:
- The container bag sewing machine is extra large working space: 500mm x500mm.
- Adopting 5 times large rotary hook, ensure the large capacity of the thread in bobbin.
- The latest fully automatic shuttle changing system can be equipped with 5 bobbins at a time.
- It can be used the extra thick polyester thread 1200D, ensure the high strength of the sewing fabrics.
- The high-precision thread broken detector design greatly improves the continuous working efficiency.
- There are varies different stitch patterns, and also can input by USB.
- Equipped with DAHAO high efficiency servo motor.
- Using Japanese SMC cylinder.
