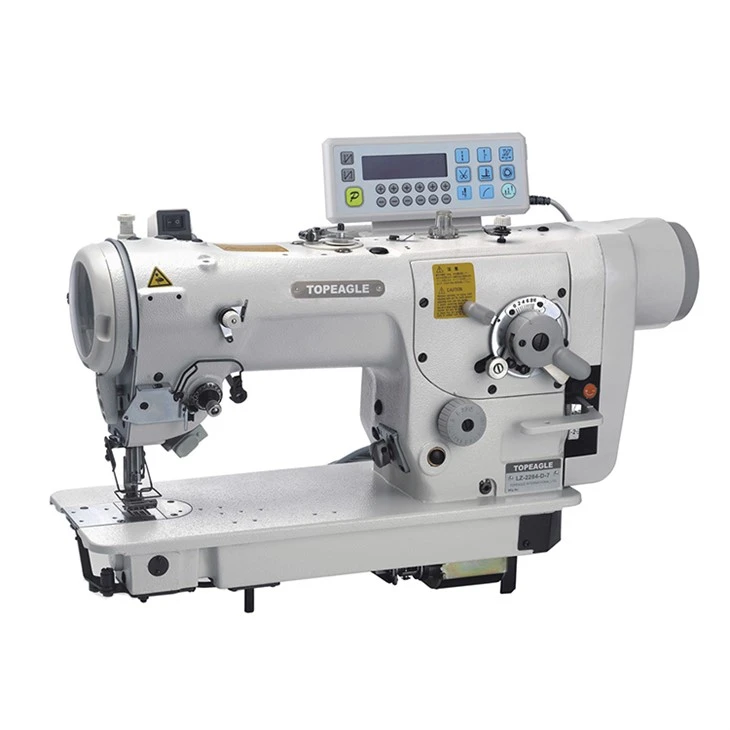

LZ-2284 Series High-Speed Zigzag Sewing Machine
Subtitle
Classic External-Panel Model with Standard / 3-Step Zigzag and Automatic Sewing Options
Product Overview
LZ-2284 High-Speed Zigzag Sewing Machine
The TOPEAGLE LZ-2284 Series is a high-speed, single-needle lockstitch zigzag sewing machine designed for garment, underwear, elastic and decorative sewing applications.
The machine supports both standard zigzag and 3-step zigzag stitching, allowing operators to use one machine for different stitch formations according to the sewing operation.
Unlike the newer integrated-control LZ-2684 Series, the LZ-2284 uses a traditional external operation panel layout, making it suitable for customers who prefer this established machine configuration.
The sewing mechanism uses a rotary thread take-up system together with hook-position compensation to support stable stitch formation at relatively low thread tension. This helps reduce skipped stitches and thread breakage during high-speed zigzag sewing.
For stretch and elastic materials, a micro presser-foot lifting mechanism allows the foot to float slightly during sewing, helping reduce excessive material pressure and improve seam appearance.
Direct-drive, automatic thread-trimming and automatic presser-foot-lifting configurations are available according to model.
Classic External Operation Panel
The LZ-2284 Series uses a traditional external operation panel mounted above the sewing machine head.
This configuration provides straightforward access to machine settings while retaining the established mechanical layout of the LZ-2284 platform.
Standard and 3-Step Zigzag Stitching
The LZ-2284 Series can switch between two main zigzag stitch formations.
Standard Zigzag
Standard zigzag alternates directly between the left and right needle positions.
Typical applications include:
General zigzag sewing
Decorative stitching
Appliqué
Edge sewing
Selected elastic operations
3-Step Zigzag
A 3-step zigzag places additional stitches across the lateral needle movement, distributing the thread across a wider area.
Typical applications include:
Elastic attachment
Underwear
Lingerie
Sportswear
Stretch fabrics
Reinforcement
Decorative stitching
Stable Low-Tension Sewing
Stable Stitch Formation at Low Thread Tension
The rotary thread take-up mechanism is designed to maintain stable stitch formation even when relatively low thread tension is used.
The hook-position compensation mechanism helps balance thread catching during left and right needle movement, reducing the risk of:
Skipped stitches
Thread breakage
Irregular stitch formation
This is particularly useful during high-speed zigzag and stretch-fabric sewing.
Micro Presser-Foot Lifter
Micro Presser-Foot Lifting for Stretch Fabrics
Stretch and elastic materials can become distorted when excessive presser-foot pressure is applied.
The micro-lifter allows the presser foot to float slightly above the material during sewing, helping reduce stretching and improve seam appearance.
Suitable applications include:
Elastic materials
Underwear
Lingerie
Lightweight stretch fabrics
Selected sportswear fabrics
Model Comparison
| Model | Drive | Thread Trimmer | Auto Foot Lift | Max. Speed |
|---|---|---|---|---|
| LZ-2284 | Standard | No | No | 5,000 spm |
| LZ-2284-D | Direct Drive | No | No | 4,500 spm |
| LZ-2284-D-7 | Direct Drive | Yes | No | 4,500 spm |
| LZ-2284-D-7/P | Direct Drive | Yes | Yes | 4,500 spm |
Technical Specifications
| Specification | LZ-2284 | LZ-2284-D | LZ-2284-D-7 | LZ-2284-D-7/P |
|---|---|---|---|---|
| Machine Type | High-speed zigzag lockstitch | Same | Same | Same |
| Stitch System | Standard / 3-step zigzag | Same | Same | Same |
| Max. Sewing Speed | 5,000 spm | 4,500 spm | 4,500 spm | 4,500 spm |
| Max. Zigzag Width | 8 mm | 8 mm | 8 mm | 8 mm |
| Presser-Foot Lift | 5 / 10 mm* | -* | -* | -* |
| Needle System | DP×5 | DP×5 | DP×5 | DP×5 |
| Needle Size | #10–14 | #10–14 | #10–14 | #10–14 |
| Direct Drive | No | Yes | Yes | Yes |
| Automatic Thread Trimmer | No | No | Yes | Yes |
| Automatic Foot Lifter | No | No | No | Yes |
| N.W. / G.W. | 39 / 47 kg* | 39 / 47 kg* | 39 / 47 kg* | 39 / 47 kg* |
| Packing Size | 660 × 350 × 620 mm | Same | Same | Same |
Main Applications
The LZ-2284 Series is suitable for:
Underwear
Lingerie
Garments
Fashion apparel
Sportswear
Elastic components
Lightweight and medium-weight fabrics
Typical Sewing Operations
Standard zigzag sewing
3-step zigzag sewing
Elastic attachment
Decorative stitching
Appliqué
Reinforcement stitching
Edge stitching
Stretch-fabric sewing
LZ-2284 vs. LZ-2684
| Feature | LZ-2284 | LZ-2684 |
|---|---|---|
| Core Stitch Function | Standard + 3-step zigzag | Standard + 3-step zigzag |
| Control Layout | External operation panel | Built-in control box |
| Product Position | Classic configuration | Newer integrated configuration |
| Direct-Drive Models | Available | Standard on D Series |
| Automatic Thread Trimming | Available | Available |
| Automatic Foot Lifting | Available | Available |
| Main Application | Garment, elastic, decorative sewing |
Key words:
LZ-2284 sewing machine, LZ-2284 zigzag sewing machine, high speed zigzag sewing machine, industrial zigzag sewing machine, 3 step zigzag sewing machine, standard zigzag sewing machine, direct drive zigzag sewing machine, automatic thread trimming zigzag machine, zigzag sewing machine with automatic foot lifter, external panel zigzag sewing machine, single needle zigzag sewing machine, lockstitch zigzag sewing machine, underwear zigzag sewing machine, elastic sewing machine, decorative zigzag sewing machine
FAQ:
What is the LZ-2284 sewing machine?
The LZ-2284 is a high-speed single-needle zigzag lockstitch sewing machine designed for standard and 3-step zigzag stitching.
What stitch patterns can the LZ-2284 sew?
It can perform straight sewing, standard zigzag and 3-step zigzag stitching.
What is the difference between standard and 3-step zigzag?
Standard zigzag moves directly between the left and right stitch positions, while 3-step zigzag distributes additional stitches across the zigzag movement for wider thread coverage and greater flexibility.
What does "D" mean?
The suffix D indicates a direct-drive configuration.
What does "-7" mean?
The suffix -7 indicates automatic thread trimming.
What does "/P" mean?
The suffix /P indicates automatic presser-foot lifting.
What is the maximum sewing speed?
The basic LZ-2284 is rated at up to 5,000 stitches/min, while the current direct-drive models are rated at up to 4,500 stitches/min.
What is the maximum zigzag width?
The current TOPEAGLE specification lists a maximum zigzag width of 8 mm.
Is the LZ-2284 suitable for stretch fabrics?
Yes. Its micro presser-foot lifting mechanism is designed to assist sewing on elastic and stretch materials.
What is the difference between LZ-2284 and LZ-2684?
Both machines provide standard and 3-step zigzag sewing. The LZ-2284 uses a traditional external operation panel layout, while the newer LZ-2684 uses an integrated built-in control-box design.
