1. Product name: Flat bed unison feed sewing machine. 2. Model: TCF-1245/6-01. 3. Max sewing speed: 2800spm. 4. Automatic hook lubrication 5. Applications: Suitable for medium heavy duty material, such as leather products,Upholstery, such as car interior upholstery. etc

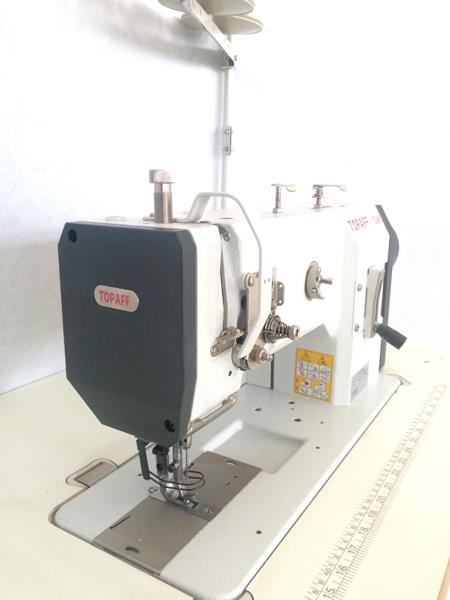

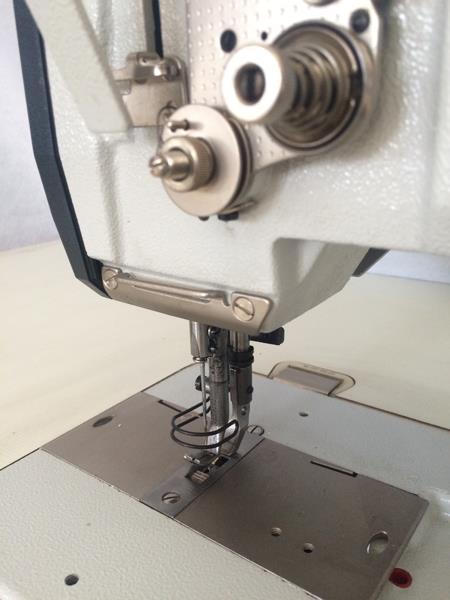

1245 Single Needle, Flat bed, Unison feed Lockstitch Sewing Machine
Features:
1245 series unison feed sewing machine is a world classic sewing machine, and it is one of the most popular sewing machine for the heavy duty materials.

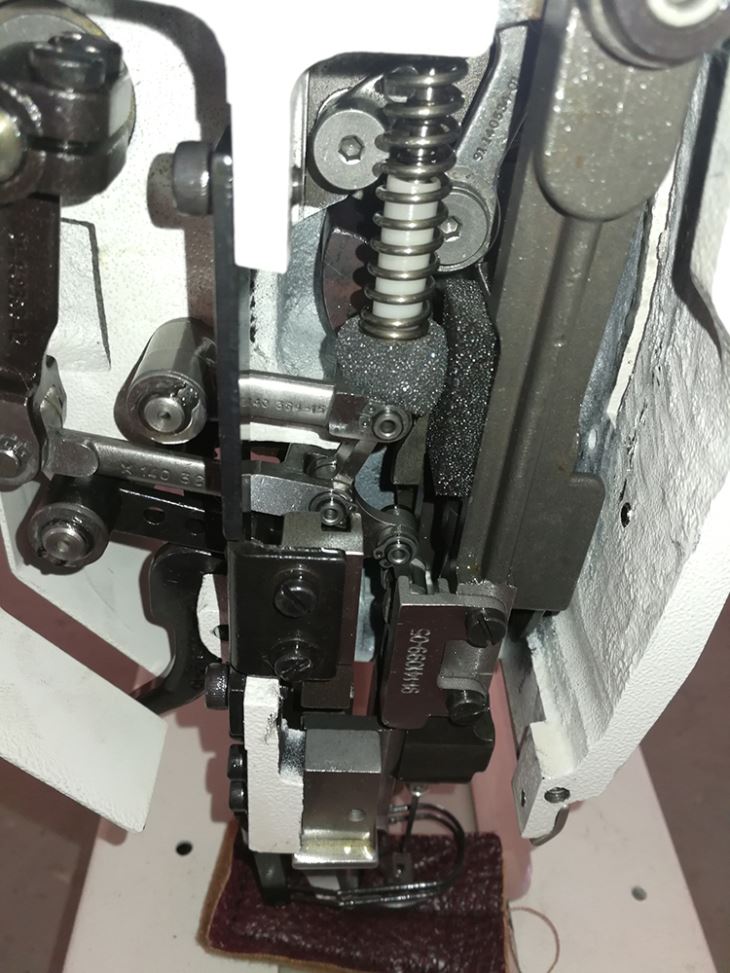

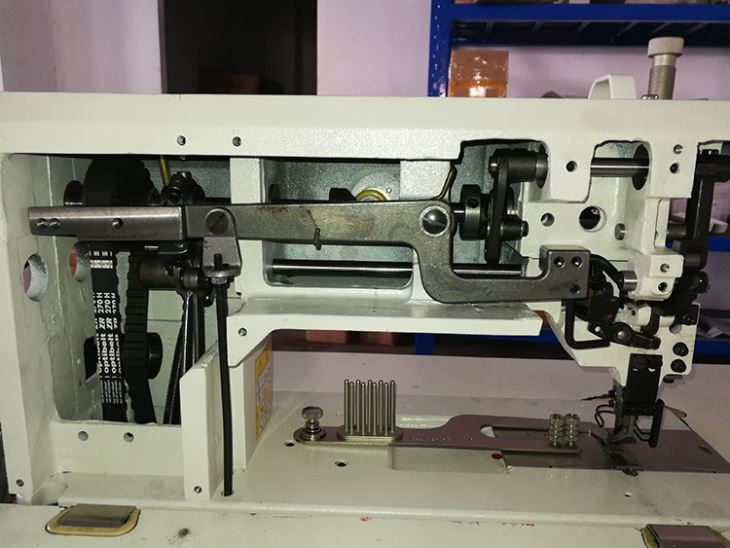

Adopts unison feed mechanism, drop feed, alternating presser foot feed and need feed mechanism.
This sewing machine adopts large vertical rotary hook with 60% more bobbin thread capacity than other standard-sized hooks, which can save time to improve the woking efficiency.

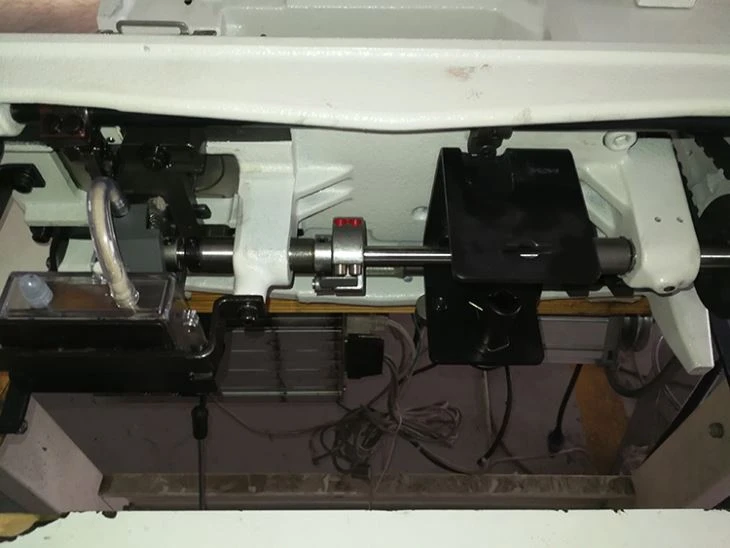

Automatic hook lubrication system.
Rugged and durable machine construction
The high top feed lift (7 mm) allows trouble-free sewing of thick materials and an easy sewing over cross seams
Easy loading and unloading – even of bulky material – due to a high fabric clearance of 14 mm
Sub model:
Code: | Function |
-900/56 | Thread trimmer (electronic mechanically controlled) |
-911/97 | Automatic presser-foot lifter (electronic pneumatically activated) |
-913/52 | Automatic needle positioner in connection with electronic motor for machines |
Applications:
1245 Sewing machine can be used for medium-heavy materials,e.g. furniture and car upholstery leather clothing, leather goods,etc.
Model:
TCF-1245-6/01 Single needle, Flat bed Unison Feed, Large vertical hook, lockstitch sewing machine
TCF-1245-6/17/01-65003 Single needle, Flat bed Unison Feed, Large vertical hook, lockstitch sewing machine with binding.
TCF-1246-6/01 Double needle, Flat bed, Unison Feed, Needle feed, Large vertical hook, lockstitch sewing machine
Technical data:
Model | 1245-6/01 | 1246-6/01 |
Stitches | Lockstitch | |
Needles | 1 | 2 |
Max. Sewing speed | 2800rpm | |
Max. Stitch length | 8mm | |
Top feed stock | 7mm | |
Fabric clearance | 14mm | |
Needle system | 134-35 | |
Needle Size in Nm | 110-180 | |
Balance wheel | 80mm | |
Needle Gauge | Standard 6.4, Optional, 4.8, 8.0, 10.0, 12.0 | |
Operation space | 270 x 115mm | |
Motor power | 550w | |
Gross weight /Net weight | 54kgs/49kgs | |
Dimensions | 770x380x700mm |
