Extra Heavy Duty Sewing Machine

Extra Heavy Duty Sewing Machine

1.Machine name: Extra heavy duty sewing machine
2.Brand: TOPEAGLE
3.Stitch length: 12 mm
4.Max.sewing speed: 800 rpm
5.Voltage: 230V 50-60Hz
6.Presser foot lift: 15-20 mm
7.Operation space: 310*185 mm
8.Synthetic: 8/3
9.Core thread:8/3
10.Vraude yarn: 0.8

Send Inquiry

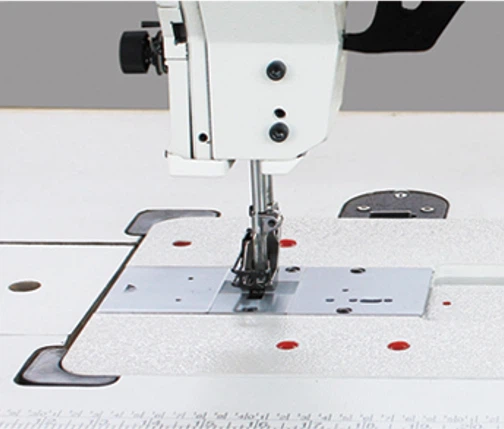

TCF-204-370 Extra heavy duty sewing machine:



TCF-204-370 Extra Heavy Duty Sewing Machine has been meticulously engineered to not only meet but exceed the demands of the most challenging and exacting sewing tasks, establishing itself as the unparalleled choice for professionals who insist on unparalleled reliability and performance in the face of rigorous conditions.



TCF-204-370 Extra heavy duty sewing machine application:



TCF-204-370 Extra heavy duty sewing machine suitable for a variety of applications including upholstery, leatherwork, canvas sewing, and other projects that require strong, reliable stitches.





TCF-204-370 Extra heavy duty sewing machine other model:



TCF-204-370 Flat bed, walking foot, needle feed, extra heavy duty lockstitch sewing machine

TCF-204-420 Flat bed, semi-long arm walking foot, needle feed, extra heavy duty lockstitch sewing machine

TCF-204-762 Flat bed, long arm walking foot, needle feed, extra heavy duty lockstitch sewing machine



TCF-204-370 Extra heavy duty sewing machine technical data:



Model

TCF-204-370

TCF-204-420

TCF-204-762

Stitch length

12 mm

Max.sewing speed

800 rpm

Material

MS.S

Voltage

230V 50-60Hz

Power consumption

1 KVA

Head weight

69 kgs

88 kgs

110 kgs

Barometric pressure

1nl 6bar

Dimensions

820*560*670 mm

870*540*640 mm

1260*550*650 mm

Stroke of the alternating sewing feet

10 mm

Presser foot lift

15-20 mm

Needle

328

Needle Nm

160-230

Operation space

310*185 mm

420*185 mm

762*185 mm

Synthetic

8/3

Core thread

8/3

Braided yarn

0.8



Video for TCF-204-420 Flat bed, semi-long arm walking foot, needle feed, extra heavy duty lockstitch sewing machine



TCF-204-370 Extra heavy duty sewing machine feature:



  • Heavy Duty Construction: The machine is built with a sturdy frame and components, capable of handling thick materials and multiple layers of fabric without strain.
  • High Sewing Speed: It typically offers high sewing speeds suitable for industrial or heavy-duty applications, ensuring efficiency in production.
  • Large Stitch Selection: It often comes with a wide range of stitch options, including basic stitches and specialized stitches for heavy materials like denim or leather.
  • Powerful Motor: Equipped with a powerful motor to provide the necessary torque for sewing through tough fabrics and materials.
  • Adjustable Presser Foot Pressure: This feature allows for fine-tuning the machine to accommodate different fabric thicknesses and types, ensuring consistent stitch quality.
  • Automatic Functions: Depending on the model, it may include automatic features such as thread trimming, backstitching, or even automatic needle positioning.
  • Extra Large Workspace: Provides ample space around the needle to maneuver large projects or bulky materials comfortably.
  • Durable Components: Components like the needle bar, hook, and feed mechanism are built to withstand the rigors of heavy-duty sewing over extended periods.
  • User-Friendly Design: Despite its power and capabilities, manufacturers often design these machines with user-friendly controls and ergonomic features for operator comfort and ease of use.



TCF-204-370



Welcome to shop online for the best tcf-204 flat bed, walking foot, needle feed, extra heavy duty lockstitch sewing machine for sale from our factory. We are one of the professional manufacturers and suppliers of various sewing machines and the machine parts in China. Enjoy the unmatched prices and services with us now.

Hot Tags: comound feed heavy duty sewing machine, China, manufacturers, suppliers, factory, prices, parts, online, best, for sale
