Walking Foot Long Arm Sewing Machine

Walking Foot Long Arm Sewing Machine

1. Machine name: Heavy Duty Long Arm Sewing Machine
2. Brand: TOPEAGLE
3. Stitch length:0-9mm
4. Stitches type: Lockstitch (301)
5. Needle type: DPx17 18# - 25#
6. Max sewing speed: 2000 rpm
7. Hook: Large vertical
8. Feed: Compound feed
9. Walking space: 760 x 120mm

Send Inquiry





TOPEAGLE is a professional manufacturer for Walking foot long arm sewing machine, we started to produce Walking foot long arm sewing machine since 20 years ago, we have more than 20 years experience for manufacturing Walking foot long arm sewing machine. And we also one of the most important wholesaler and supplier of Walking foot long arm sewing machine to the global market.



TCF-767-373-L30-7 Heavy duty long arm sewing machine:



TCF-767-373-L30-7 Heavy duty long arm sewing machine can make various sewing processes involved in the manufacture of home and car upholstery, technical textiles and leather goods call for particularly flexible machine concepts with maximum efficiency and a wide range of application.



TCF-767-373-L30-7 Heavy duty long arm sewing machine feature:



TCF-767-373-L30-7 with their new, highly productive features and variable equipment allow the optimum use of this series for a great variety of operations in medium-weight material.



  1. Due to the sturdy, technically sophisticated design and the well-proven high performance technique this series is especially suitable for problem-free processing of thick materials and threads as well as difficult to sew material structures.
  2. Complete modular system for nearly all sewing operations in medium-weight material.
  3. Excellent stitch lines and uniform and tight stitch formation, even in case of large stitch lengths and extremely thick sewing threads.
  4. A multitude of stitch lengths available for standard seams and decorative top stitching
  5. The powerful and effective feeding system with bottom feed, needle feed and alternating top feed guarantees trouble- and displacement-free material feed when processing the most different material sizes and structures.
  6. The complete range of sewing equipment, attachments and optional equipment makes it possible to provide the machine with the optimum equipment for every sewing operation.
  7. Adopts higher performance and quality by means of quick stroke adjustment,
  8. Automatic back tacking and sewing foot lift, upgrade to bobbin thread monitor, over sized hook with a bobbin thread capacity increased by 60% to increase bobbin changes to increase the works effieciency.
  9. -7 type machine is equipemtn with automatic thread trimmer, which increased the sewing effieciency.

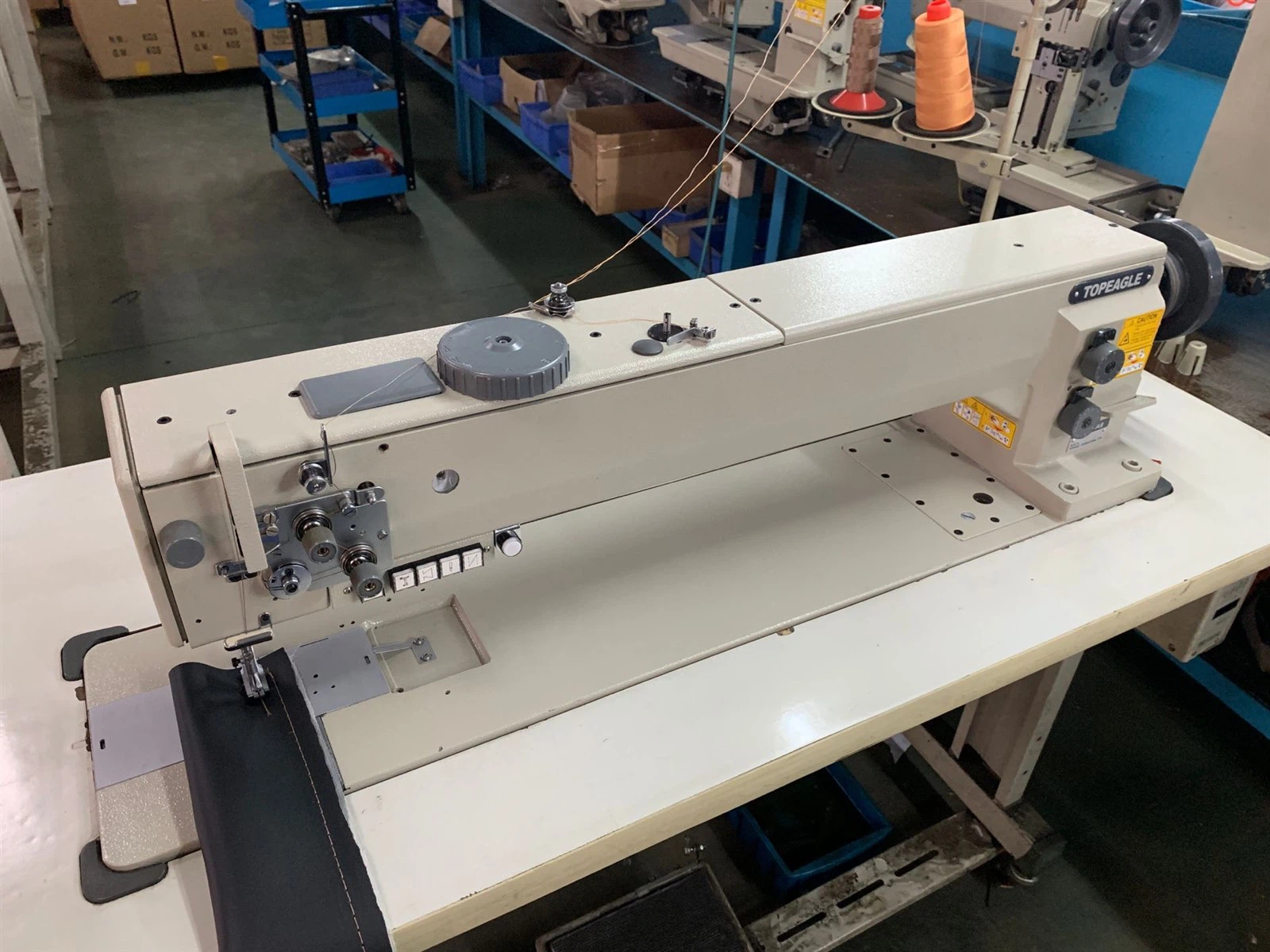

20190612162948



TCF-767-373-L30-7 Heavy duty long arm sewing machine application:



TCF-767-373-L30-7 Heavy duty long arm sewing machine suitable for sewing leather products, sofa, bag, car, seat, bags, sports requisites,etc.



TCF-767-373-L30-7 Heavy duty long arm sewing machine model:



TCF-767-373-L30    Single needle, Flat bed, Long arm Drop feed, Walking foot Needle feed Lockstitch Sewing machine for Upholstery.

TCF-767-273-L30   Double needle, Flat bed, Long arm Drop feed, Walking foot Needle feed Lockstitch Sewing machine for Upholstery.

TCF-767-373-L30-7   Single needle Flat bed, Long arm Drop feed, Walking foot Needle feed Lockstitch Sewing machine with automatic thread trimmer for Upholstery

TCF-767-273-L30-7  Double needle, Flat bed, Long arm Drop feed, Walking foot Needle feed Lockstitch Sewing machine with automatic thread trimmer for Upholstery.



TCF-767-373-L30-7 Heavy duty long arm sewing machine technical data:



Model

TCF-767-373-L30

TCF-767-273-L30

TCF-767-373-L30-7

TCF-767-273-L30-7

Max. sewing speed

2000 rpm

Stitch length

0-9 mm

Needle bar stroke

37 mm

Presser foot lift

By hand: 9 mm, By knee: 16 mm, Pneumatic: 16 mm

Needle size

DP*17 18#~25#

Hook

Large vertical hook(1.6 times)

Alternating vertical movement

1.5-7 mm

Gauge size

-

6.4,8,10,12,16 mm

-

6.4,8,10,12,16 mm

Auto presser foot

-

Cylinder

Auto presser foot alternation

-

Cylinder

Lubrication

Auto lubrication

Reverse sewing

-

Auto reverse sewing

Working space

760*120 mm

Motor

500W Clutch motor

750W Servo motor



Welcome to shop online for the best TCF-767-373-L30-7 flat bed, drop feed, walking foot, needle feed lockstitch long arm sewing machine for sale from our factory. We are one of the professional manufacturers and suppliers of various sewing machines and the machine parts in China. Enjoy the unmatched prices and services with us now.
