Leather Sewing Machine

Cylinder Bed Leather Sewing Machine

Cylinder Bed Leather Sewing Machine

1.Machine name: Cylinder bed leather sewing machine
2.Brand: TOPEAGLE
3.Max sewing speed: 2500spm.
4. Feed mechanism: Compound feed.
5.Max stitch length: 9mm
6.Working space: 335 x125mm
7.Hook: Large hook
8.Needle type: 134-35#100-#150
9.Presser foot lift height: 20mm
10.Packing size: 660*380*570mm

Send Inquiry

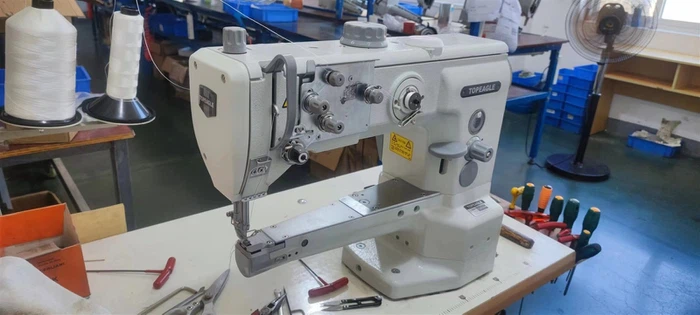

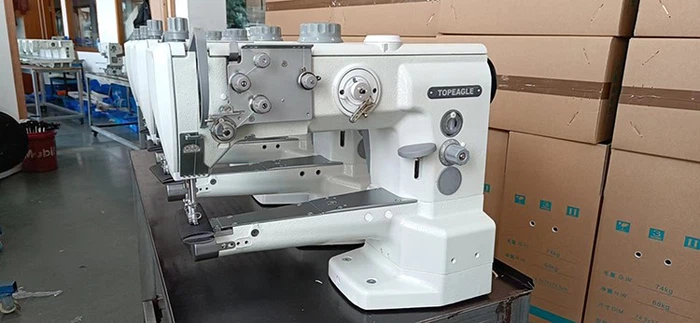

TOPEAGLE TCB-669-180010 Cylinder Bed Leather Sewing Machine:



Cylinder bed leather sewing machine is the classic type small cylinder bed sewing machine, adopts the powerful and effective compound feeding system with bottom feed, needle feed and alternating feet feed, which guarantees a trouble-free and displacement-free material feed when processing most different fabric thicknesses and structures.it is a universal sewing machines for small leather products, such as leather belts, wallet, key bag, leather clothes, uphostery, shoes and bags.



TOPEAGLE TCB-669-180010 Cylinder Bed Leather Sewing Machine Application:



Cylinder bed leather sewing machine suitable for all the universal leather products, especially for tubular or pre-attached articles, such as leather wear, bags and small leather craft articles.



TOPEAGLE TCB-669-180010 Cylinder Bed Leather Sewing Machine Parameter:



Model

TCB-669-180010

Max sewing speed

2500spm

Number of Needles

1

Needle type

134-35 #100 - #150

Thread

Needle thread: 83/3 - 15/3, Hook thread: 80/3 - 20/3

Stitches type

Lockstitch 301

Stitch length

9mm

Presser foot lift height

20mm

Max sewing thickness

10mm

Hook

Horizontal large hook (26mm)

Working space

335*125mm

Gross weight / Net weight

56 / 50kgs

Packing size

660*380*570mm



TOPEAGLE TCB-669-180010 Cylinder Bed Leather Sewing Machine Feature:

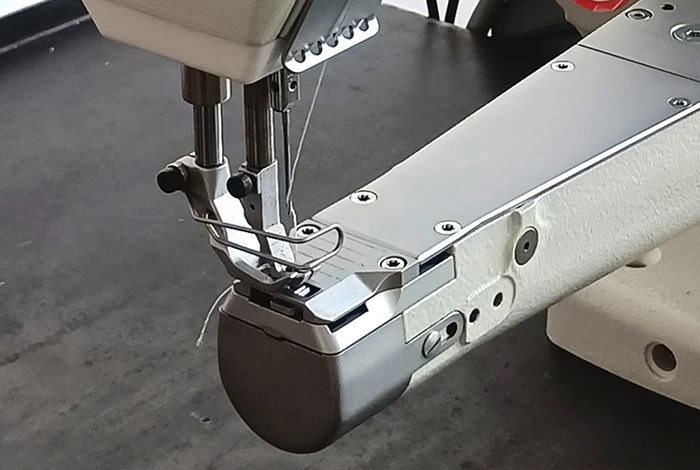

  • Cylinder bed leather sewing machine adopts unison feeding mechanism, feed dog, needle bar and alternating feet feed at same time, it can ensure the feeding smoothly.
  • Adopt horizontal large rotary hook(26mm), can save the time to changing the bobbin.
  • The extremely high sewing foot lift up to 20 mm max. facilitates the feeding and removing of bulky work pieces.
  • Built-in bobbin winder.
  • High top feed stroke up to 9 mm allows the safe climbing over thick material plies.
  • Up to 9 mm long stitches for standard seams and decorative top stitching.
  • The large operation space (335 mm wide and 125 mm high)facilitates the handling of tubular work pieces.
  • Excellent view on the sewing area Integrated bobbin winder with winding starting aid.
  • Easily maintenance.
  • Low noise level.



-2



20230706120218



202212141026255



Welcome to shop online for the best cylinder bed sewing machine for sale from our factory. We are one of the professional manufacturers and suppliers of cylinder bed sewing machine and the machine parts in China. Enjoy the unmatched prices and services with us now.

Hot Tags: cylinder bed leather sewing machine, China, manufacturers, suppliers, factory, prices, parts, online, best, for sale
