Key Features

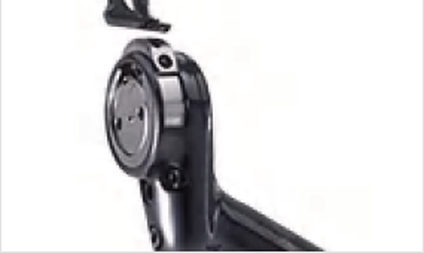

Swing Arm Structure
The lightweight swing arm design provides access to the side seam area of footwear.
Double Lock Stitch Formation
Produces double lock stitches for shoe sidewall and border sewing applications.
Oil-Immersed Lubrication
The oil-immersed lubrication system helps protect the rotating mechanism during operation.
Divided Rotating Mechanism
The divided rotating structure automatically stops the rotating mechanism when the operator grips the machine, as described in the product flyer.
Computer-Controlled Presser Foot
Provides automatic presser foot positioning and controlled operation.
Adjustable Rotation Speed
The rotating mechanism can reach up to 2,000 cycles per minute, according to the product flyer.
3–13 mm Stitch Length
Provides an adjustable stitch length range for different footwear side-seam requirements.
Specialized Footwear Applications
Suitable for sneakers, casual shoes and other compatible footwear constructions.
Technical Specifications
|
Model |
TSH-2168 |
|---|---|
|
Machine Type |

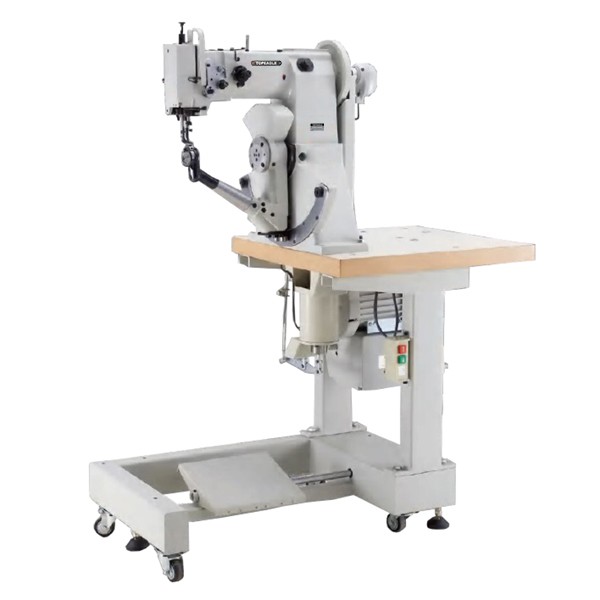

Swing Arm Shoe Sidewall Stitching Machine |
|
Stitch Type |
Double Lock Stitch |
|
Stitch Length |
3–13 mm |
|
Sewing Thickness |
1.5–6 mm |
|
Needle System |
CP×5 |
|
Motor |
220V / 750W, Two-Phase |
|
Presser Foot Control |
Computer-Controlled |
|
Rotating Mechanism Speed |
Up to 2,000 cycles/min |
|
Weight |
150 kg |
|
Overall Dimensions (L × W × H) |
107 × 56 × 125 cm |
Typical Applications
The TOPEAGLE TSH-2168 is designed for shoe sidewall and border stitching in footwear manufacturing.
Typical footwear applications include:
Sneakers and sports shoes
Casual shoes
Shoes with stitched upper-to-sole side seams
Footwear requiring double lock stitch sidewall construction
Other suitable footwear with accessible side-seam stitching areas
The suitability of the machine depends on shoe construction, material thickness and stitching requirements.
Frequently Asked Questions
What is a shoe sidewall stitching machine?
A shoe sidewall stitching machine is used to sew along the side of footwear, particularly around the junction between the shoe upper and sole. The exact stitching method depends on the shoe construction.
What is the TSH-2168 used for?
The TOPEAGLE TSH-2168 is designed for double lock stitch side-seam sewing on sneakers, casual shoes and other compatible footwear.
Is a shoe sidewall stitching machine the same as a shoe border sewing machine?
The terms may be used for similar footwear side-stitching applications. However, the machine must be selected according to the actual seam position, shoe construction and stitch requirements.
What stitch type does the TSH-2168 produce?
The TSH-2168 uses a double lock stitch structure for footwear side-seam applications.
What is the stitch length range?
The published stitch length range is 3–13 mm.
What is the sewing thickness range?
The specified sewing thickness range is 1.5–6 mm.
What is the difference between TSH-2168 and TSH-2188?
The TSH-2168 is designed for double lock stitch shoe sidewall sewing. The TSH-2188 is an ornamental side-seam sewing machine offering 12 stitch patterns, including 7 single-needle and 5 double-needle patterns.
Can the TSH-2168 be used for different shoe styles?
Yes. It can be considered for sneakers, casual shoes and other suitable footwear. The stitching area, material thickness and shoe construction should be confirmed before selection.
Looking for a Shoe Sidewall Stitching Machine?
TOPEAGLE supplies specialized industrial sewing machines for footwear manufacturing.
The TSH-2168 Swing Arm Shoe Sidewall Stitching Machine is designed for double lock stitch side-seam sewing on suitable footwear.
For machine selection and quotation, please provide:
Shoe type and construction
Photos of the sidewall stitching area
Material thickness
Required stitch length
Production requirements
Contact TOPEAGLE for machine configuration details and a quotation.
