Automatic Pocket Setter Sewing Machine

Name: Automatic Pocket Setter Sewing Machine
Brand: TOPEAGLE
SKU: 211625371

1.Machine name: Automatic pocket settr sewing machine
2.Brand: TOPEAGLE
3.Head sewing speed: 3000sti/min
4.Machine needle: DP*17 OR DP*5
5.Stitch distance: 1.0mm-3.5mm
6.Pressure foot rising height: 80mm
7.Speed of sewing pockets: 6-10 seconds per second
8.Power sipply: AC220V
9.Air pressure and Air pressure consumption: 0.5MPa(5kg/cm²)，22dm/min
10.Weight: 650kgs

Catalog

Send Inquiry

TOPEAGLE ASM-1008-311 automatic pocket setter sewing machine:

TOPEAGLE is a professional manufacturer for Automatic Pocket Setter Sewing Machine, We start to produce Automatic Pocket Setter Sewing Machine since 20 years ago, we have more than 20 years experience for manufacture Automatic Pocket Setter Sewing Machines. And we also one of the most important wholesaler and exporter of Automatic Pocket Setter Sewing Machines to the global market.

ASM-1008-311 automatic pocket setter sewing machine adopt computerized pattern sewing machine head which is driven by servo motor, the biggest feature of the automatic pocket sewing setter sewing machine is that folding pocket press frame and pocket plate expansion are driven directly by motor. Fast speed, low noise and long running service life are the characteristics of the machine. All the key spare parts are import with top quality. The automatic pocket setter sewing machine is suitable for all kinds of pockets, It is special for the medium heavy duty and heavy duty materials such as jeans and medium-thick materials.

TOPEAGLE ASM-1008-311 automatic pocket setter sewing machine application:

The automatic pocket setter sewing machine is suitable for all kinds of pockets, It is special for the medium heavy duty and heavy duty materials such as jeans and medium-thick materials.

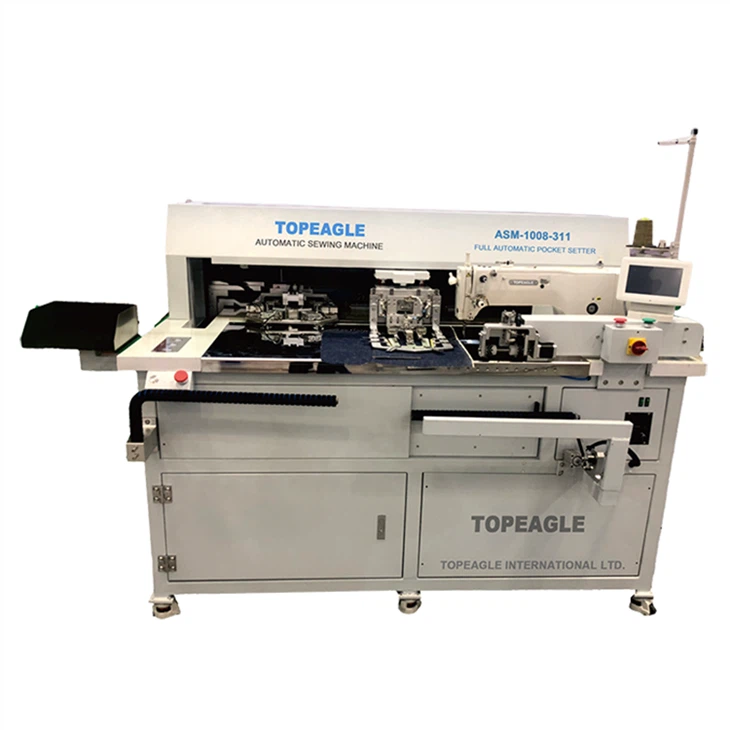

Automatic pocket setter sewing machine

TOPEAGLE ASM-1008-311 automatic pocket setter sewing machine parameter:

Model	ASM-1008-311
Head sewing speed	3000sti/min
Equipped with machine head	TPS-311
Machine needle	DP17 OR DP5
Sewing stitch programming	Input mode of operation screen
Line Programming Storage Capacity	Up to 999 kinds of patterns can be stored
Stitch distance	1.0mm-3.5mm
Pressure foot rising height	80mm
Sewing pocket range	X direction 50-260mm Y direction 50mm-220mm
Speed of sewing pockets	6-10 seconds per second.
Folding method	Double cylinder folder in 7 directions works simultaneously to fold Pockets
Sewing methods	Pocket folding and sewing are carried out at the same time, with protective function of broken thread
Feeding Drive Mode	(750w)Taiwan DELTA servo motor drive (750w
Power Supply	AC220V
Air Pressure and Air Pressure Consumption	0.5Mpa (5kg/cm²) ,22dm /min
Weight	650kgs

TOPEAGLE ASM-1008-311 automatic pocket setter sewing machine feature:

The automatic pocket sewing machine does not need heating, from cold mold to sewing molding, eliminating the need for hot pocket equipment and pocket hot process.
It is automatic feeding, folding, sewing without intermittent continuous operation.
It is controlled by servo system, the sewing pattern is precise, the stitches are beautiful and the performance of the equipment is greatly improved.
The unique quick mold change device can quickly change the product size or style, save adjustment time and improve work efficiency.
Them aximum sewing range of the automatic pocket setter is26*22cm.

Welcome to shop online for the best automatic pocket setter sewing machine for sale from our factory. We are one of the professional manufacturers and suppliers of automatic pocket setter sewing machine and the machine parts in China. Enjoy the unmatched prices and services with us now.

Hot Tags: automatic pocket setter sewing machine, China, manufacturers, suppliers, factory, prices, parts, online, best, for sale
