TPW-1008-8T Automatic Laser Pocket Welting Machine
The TOPEAGLE TPW-1008-8T integrates laser cutting, automatic folding and programmable sewing for efficient pocket welting operations in garment production.
Its major advantage is the ability to produce different pocket sizes without changing jigs, providing greater flexibility for garment manufacturers handling multiple pocket specifications.
Key Features
1. Different Pocket Sizes Without Changing Jigs
The TPW-1008-8T can produce different pocket opening sizes within its specified working range without changing jigs.
This reduces setup time when switching between pocket sizes and supports flexible production of different garment styles.
Pocket Sewing Range: 100–220 mm (Length) × 12–30 mm (Width).
2. Integrated Laser Cutting
Equipped with a 100W laser cutting system for pocket opening operations.
3. Automatic Four-Side Folding
The automatic folding mechanism folds pocket components in four directions, reducing manual folding operations.
4. Programmable Sewing System

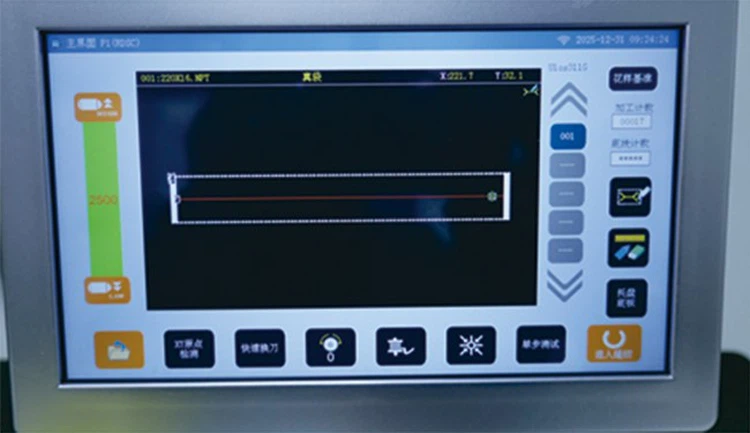

The machine features a programmable sewing system with touchscreen operation and storage for up to 999 sewing patterns.
5. Servo-Driven Operation
A 750W DELTA servo drive supports the feeding mechanism, together with motor-driven folding and frame adjustment functions.
6. Automatic Material Handling
An automatic handling mechanism assists with transferring and arranging sewn components after the sewing cycle.
7. Thread Breakage Protection
The sewing system includes a thread breakage protection function.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TPW-1008-8T |
| Machine Type | Automatic Laser Pocket Welting Machine |
| Pocket Size Adjustment | Without Changing Jigs |
| Maximum Sewing Speed | 3,000 stitches/min |
| Sewing Head | Programmable Pattern Sewing Head |
| Needle System | DP×17 or DP×5 |
| Pattern Storage | Up to 999 Patterns |
| Stitch Length | 1.0–3.5 mm |
| Presser Foot Lifting Height | 60–80 mm |
| Pocket Sewing Range (L × W) | 100–220 × 12–30 mm |
| Specified Cycle Time | 10–15 seconds/pocket |
| Folding Method | Automatic Four-Side Folding |
| Laser Power | 100W |
| Feeding Drive | DELTA Servo Motor, 750W |
| Power Supply | AC 220V |
| Air Pressure | 0.5 MPa |
| Air Consumption | 22 dm³/min (To Be Confirmed) |
| Machine Weight | 950 kg |
Typical Applications
The TPW-1008-8T is suitable for automated pocket opening and welting operations in garment manufacturing.
Typical applications include:
Welt pockets on trousers and other garments
Decorative and imitation pocket openings
T-shirt plackets
Zipper openings on sports trousers
Multiple pocket sizes without jig changes
Frequently Asked Questions
Q1. What is the TPW-1008-8T used for?
It is designed for automatic pocket opening, folding and sewing operations, particularly welt pockets and selected garment opening applications.
Q2. Does the machine include laser cutting?
Yes. The TPW-1008-8T is equipped with a 100W laser cutting system.
Q3. What pocket sizes can the machine handle?
The specified pocket sewing range is 100–220 mm in the X direction and 12–30 mm in the Y direction.
Q4. Can the machine store sewing patterns?
Yes. The programmable sewing system can store up to 999 patterns.
Q5. What is the production cycle time?
The listed cycle time is approximately 10–15 seconds per pocket, depending on the sewing program and operating conditions.
Q6. Does the machine require compressed air?
Yes. The specified operating air pressure is 0.5 MPa.
Request a Quotation
Interested in the TPW-1008-8T Automatic Laser Pocket Welting Machine?
This machine can produce different pocket sizes without changing jigs, making it suitable for garment manufacturers handling multiple pocket specifications.
Please contact TOPEAGLE for pricing, machine configuration and shipping information.
To help us provide an accurate quotation, please include:
Required pocket size (Length × Width)
Pocket type and garment material
Estimated production capacity
Quantity required
Destination country
