1. With the independently-drive top feeding mechanism, feeding efficiency is increased dramatically. 2. its top feeding mechanism enables smooth and beautiful stitches. 3. Equipped with small cylinder bed of which perimeter is only 146mm, the sleeve hemming for T-shirt, Children clothing, etc. 4. Suitable for fabrics with slippage materials,pattern matching operation. Light to medium weight materials.
TN-5100T series small cylinder bed overlock sewing machine adopt With the independently-drive top feeding mechanism, feeding efficiency is increased dramatically.
Its top feeding mechanism enables smooth and beautiful stitches.suitable for sewing on slippery fabrics.Suitable for fabrics with slippage materials,pattern matching operation. Light to medium weight materials.

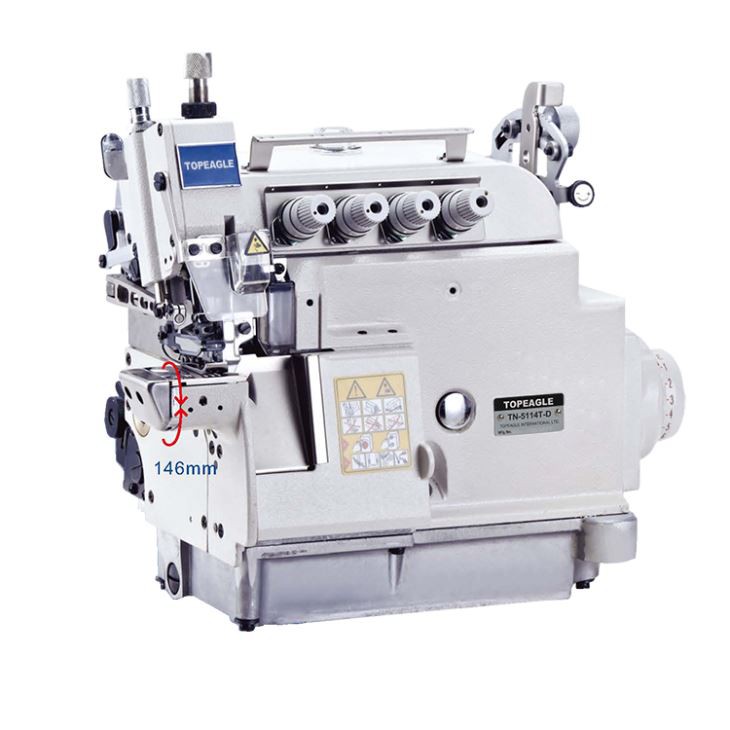

Equipped with small cylinder bed of which perimeter is only 146mm, the sleeve hemming for T-shirt, Children clothing, etc., all can be handle easily, there is 10mm space on the right side of the needle drop point for optional device to be equipped.
TN-5100T-SB with additional accessory for sewing bed on the small cylinder bed overlock machine, it can be used as flat bed overlock machine.
TN-5100D adopting the direct drive motor which can be achieve the energy saving up to 70%, it suitable for sewing on small-size tubular goods such as children and babies clothes and sleeve of T-shirt.
TN-5104T Super Speed 3 thread small cylinder variable top feed bed overlock machine
TN-5114T Super Speed 4 thread small cylinder variable top feed bed overlock machine
TN-5104T-SB Super Speed 3 thread small cylinder variable top feed bed overlock machine With Sewing Bed
TN-5114T-SB Super Speed 4 thread small cylinder variable top feed bed overlock machine With Sewing Bed
TN-5104TD Super Speed Direct Drive 3 Thread Small Cylinder Bed Variable Top Feed Overlock machine
TN-5114TD Super Speed Direct Drive 4 Thread Small Cylinder Bed Variable Top Feed Overlock machine
Technical data:
Model | Description | NO.s Of Needle | NO.s Of Thread | Needle Gauge | Overlock Stitch Width | Stitch Length | Differential Ratio | Automatic Presser Foot Lifter | Speed | Volume | G.W./V.W |
TN-5104T | 3 thread small cylinder bed overlock with variable top feed | 1 | 3 | 3-4-5 | 3.2 | 0.7-2.4 | 5 | 7000 | 470×365×500 | 27/34 | |
TN-5114T | 4 thread small cylinder bedoverlock with variable top feed | 2 | 4 | 2 | 5-6-7 | 3.8 | 0.8-1.8 | 5.5 | 7000 | 470×365×500 | 27/34 |
TN-5104TD | direct drive 3 thread small cylinder bed | 1 | 3 | 3-4-5 | 3.2 | 0.7-2.4 | 5.5 | 7000 | 470×365×500 | 30/37 | |
TN-5114TD | direct drive 4 thread small cylinder | 2 | 4 | 2 | 5-6-7 | 3.8 | 0.8-1.8 | 5.5 | 7000 | 470×365×500 | 30/37 |
Welcome to shop online for the best tn-5100t（d） super speed (direct drive) small cylinder bed variable top feed overlock sewing machine series for sale from our factory. We are one of the professional manufacturers and suppliers of various sewing machines and the machine parts in China. Enjoy the unmatched prices and services with us now.
