TOPEAGLE TPS-6220A-12080D pattern template machine:

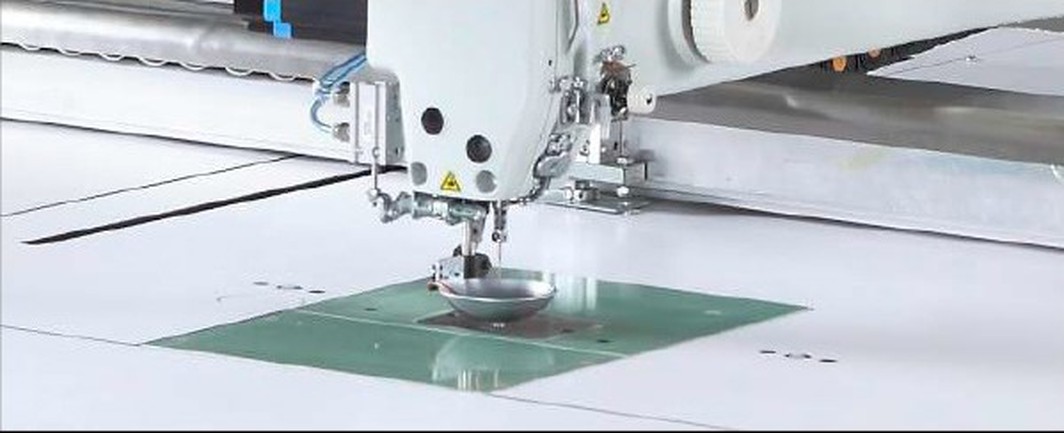

TOPEAGLE TPS-6220A-12080D pattern template machine Double screw, double track, double servo motor, large machine frame design, rod and head parts without oil lubrication, the rotary spindle oil line micro oil lubrication, cutting cam pre maintenance is convenient, the new template clamping device, reduce the pressure requirements, folding table for easy handling.
TOPEAGLE TPS-6220A-12080D patterm template machine application:
TOPEAGLE TPS-6220A-12080D pattern template machine modular installation of laser, cutter, bag opening, laser/suction device can replace some lockstitch sewing machines.
In addition to ordinary honing thread, it can also be used for template sewing process requirements such as thousands of patch bags, turtle backs, and labeling.
TOPEAGLE TPS-6220A-12080D pattern template machine parameter:
|
Model |
TPS-6220A-12080-D |
TPS-6220A-12080-D/J |
TPS-6220A-12080-D/QX |
|
Sewing area |
1200*800mm |
||
|
Stitch type |
301 |
||
|
Max.sewing speed |
3000sti/min |
||
|
Stitch length |
0.5-12.7mm |
||
|
Needle |
DB*1(#8)#7-14 |
||
|
Template support method |
Pneumatic clamping or pressing type |
||
|
Hook |
Full rotation double hook |
||
|
Adjustment range of middle presser foot |
Amplitude 4mm Max.lift 20mm Position 9mm |
||
|
Program input mode |
USB |
||
|
Voltage |
220V |
||
|
Air pressure |
0.4-0.6MPa |
||
|
Total Power |
750W |
850W |
|
|
Gross weight/net weight |
760/650kgs |
840/720kgs |
760/650kgs |
|
Packing size |
1880*1380*1500mm |
||
TOPEAGLE TPS-6220A-12080D pattern template machine feature:
- Servo motor and screw drive
- The machine head adopts oil-free lubrication technology, and the hook adopts oil line lubrication technology. The application of the two technologies solves the problem of high speed operation of the machine, and completely eliminates the pollution of liquid lubricant to the fabric.
- The structure of taper clamping is adopted to ensure the free clearance of the clamping plate, convenient operation, and to reduce the pressure stability of the air source. When the air pressure drops to 0.4MPa, the template can be pressed and worked normally; The simple template design greatly reduces the cost of template production.
