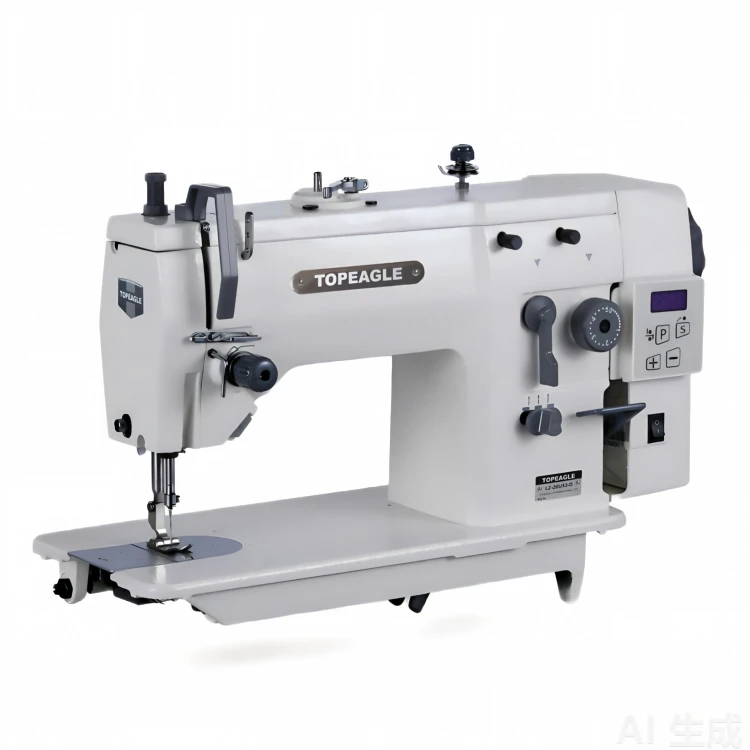

LZ-20U53 / 20U63 / 30U53 Industrial Zigzag Sewing Machines
9 mm and 11 mm Straight & Zigzag Sewing Machines with Standard, Direct-Drive and Large-Hook Configurations
Short Description
The TOPEAGLE LZ-20U53, LZ-20U63 and LZ-30U53 series are medium-speed industrial zigzag sewing machines for straight stitching, standard zigzag, appliqué and decorative sewing. The series offers 9 mm and 11 mm zigzag models, standard and direct-drive versions, and a large-hook LZ-30U53 configuration for increased bobbin-thread capacity.
Product Overview
Industrial Straight & Zigzag Sewing Machine Series
The TOPEAGLE LZ-20U53, LZ-20U63 and LZ-30U53 series are single-needle industrial lockstitch machines designed for both straight and zigzag sewing on light- to medium-weight materials and selected medium-weight applications.
The machines can be used for general zigzag stitching, decorative sewing, appliqué, edge stitching, zipper installation and other sewing operations requiring adjustable zigzag width.
The series is available in several configurations according to the required zigzag width, hook capacity and drive system.
The LZ-20U53 provides a maximum zigzag width of 9 mm, while the LZ-20U63 increases the maximum zigzag width to 11 mm for applications requiring wider stitch coverage.
The LZ-30U53 maintains the 9 mm zigzag configuration but uses a large-capacity hook, providing greater bobbin-thread capacity for longer continuous sewing operations.
Direct-drive versions are identified by the suffix "D", including the LZ-20U53D, LZ-20U63D and LZ-30U53D.
Understanding the Model Range
LZ-20U53 - 9 mm Standard Zigzag
Designed for general straight and zigzag sewing with a maximum zigzag width of 9 mm.
Suitable when standard hook capacity and conventional zigzag width are sufficient.
LZ-20U53D - 9 mm Direct-Drive Zigzag
The direct-drive version of the LZ-20U53, combining the same 9 mm zigzag capability with a direct-drive configuration.
LZ-20U63 - 11 mm Wide Zigzag
Provides a maximum zigzag width of 11 mm for applications requiring wider decorative or functional zigzag stitches.
LZ-20U63D - 11 mm Direct-Drive Wide Zigzag
The direct-drive version of the LZ-20U63, retaining the maximum 11 mm zigzag width.
LZ-30U53 - 9 mm Large-Hook Zigzag
A 9 mm zigzag model equipped with a large-capacity hook and bobbin system.
The larger bobbin provides increased bobbin-thread capacity, reducing the frequency of bobbin replacement during longer sewing operations.
LZ-30U53D - 9 mm Direct-Drive Large-Hook Zigzag
Combines the large-hook configuration of the LZ-30U53 with direct drive.
Model Comparison
| Model | Max. Zigzag Width | Hook | Drive | Needles |
|---|---|---|---|---|
| LZ-20U53 | 9 mm | Standard | Standard | 1 |
| LZ-20U53D | 9 mm | Standard | Direct Drive | 1 |
| LZ-20U63 | 11 mm | Standard | Standard | 1 |
| LZ-20U63D | 11 mm | Standard | Direct Drive | 1 |
| LZ-30U53 | 9 mm | Large Hook | Standard | 1 |
| LZ-30U53D | 9 mm | Large Hook | Direct Drive | 1 |
Note: The 11 mm LZ-20U63 series is available with the standard hook only. There is no LZ-30U63 large-hook model in this series.
9 mm vs. 11 mm Zigzag Width
The required zigzag width depends on the stitch appearance and sewing operation.
The LZ-20U53 and LZ-30U53 series provide up to 9 mm zigzag width, which is suitable for general garment zigzag sewing, appliqué and decorative operations.
The LZ-20U63 series provides up to 11 mm zigzag width, making it suitable when a broader zigzag pattern or wider stitch coverage is required.
Choose the zigzag width according to the actual seam rather than material thickness alone.
Standard Hook vs. Large Hook
The LZ-20U53 and LZ-20U63 use the standard hook configuration.
The LZ-30U53 uses a larger hook and bobbin system, providing increased bobbin-thread capacity.
A larger bobbin can:
Hold more bobbin thread
Reduce the frequency of bobbin changes
Support longer continuous sewing operations
Improve convenience when more bobbin capacity is required
Standard Drive vs. Direct Drive
The series is available in standard and direct-drive configurations.
Standard models:
LZ-20U53
LZ-20U63
LZ-30U53
Direct-drive models:
LZ-20U53D
LZ-20U63D
LZ-30U53D
The suffix "D" identifies the direct-drive version.
Straight & Zigzag Sewing
The machine can perform both straight lockstitch and standard zigzag sewing.
For straight sewing, the zigzag width can be reduced to the straight-stitch position.
For zigzag operations, the width can be adjusted within the range of the selected model.
This allows one machine to be used for several general sewing operations without being limited to zigzag stitching only.
Adjustable Needle Position
The needle position can be adjusted to the:
Left
Center
Right
This provides additional flexibility for:
Edge stitching
Zipper insertion
Decorative sewing
Appliqué
Sewing close to an edge
Different stitch-line positions
Reverse Feed
Reverse Sewing
The machine is equipped with a reverse-feed mechanism for sewing backward when required.
Reverse stitching can be used for securing the beginning and end of selected seams and for other operations requiring backward feeding.
Built-In Bobbin Winder
The integrated bobbin-winding mechanism provides convenient bobbin preparation during normal sewing-machine operation.
Main Applications
The LZ-20U53 / 20U63 / 30U53 series can be used for:
Garments
Underwear
Fashion apparel
Uniforms
Gloves
Caps
Selected leather goods
Light bags
Sample making
Alteration work
General sewing workshops
Typical Sewing Operations
Straight stitching
Standard zigzag stitching
Decorative zigzag sewing
Appliqué
Edge stitching
Zipper insertion
Fabric joining
Selected reinforcement sewing
Decorative stitch work
Technical Specifications
| Specification | LZ-20U53 | LZ-20U53D | LZ-20U63 | LZ-20U63D | LZ-30U53 | LZ-30U53D |
|---|---|---|---|---|---|---|
| Max. Sewing Speed | 1,800 spm | 1,800 spm | 1,800 spm | 1,800 spm | 1,800 spm | 1,800 spm |
| Needle System | DP×5 | DP×5 | DP×5 | DP×5 | DP×5 | DP×5 |
| Max. Stitch Length | 5 mm | 5 mm | 5 mm | 5 mm | 6 mm* | 6 mm* |
| Presser Foot Lift | 6 / 10 mm | 6 / 10 mm | 6 / 10 mm | 6 / 10 mm | 6 / 12 mm* | 6 / 12 mm* |
| Max. Zigzag Width | 9 mm | 9 mm | 11 mm | 11 mm | 9 mm | 9 mm |
| Hook | Standard | Standard | Standard | Standard | Large Hook | Large Hook |
| Drive | Standard | Direct | Standard | Direct | Standard | Direct |
| N.W. / G.W. | 20 / 24 kg | 22.5 / 27.5 kg | 20 / 24 kg | 22.5 / 27.5 kg | 20 / 24 kg | 22.5 / 27.5 kg |
| Packing Size | 550×260×360 mm | 600×270×510 mm | 550×260×360 mm | 600×270×510 mm | 550×260×360 mm | 600×270×510 mm |
How to Choose the Right Model
Choose LZ-20U53
When you need:
Standard hook
Maximum 9 mm zigzag width
General straight and zigzag sewing
Choose LZ-20U53D
When you need the same 9 mm zigzag configuration with direct drive.
Choose LZ-20U63
When the sewing operation requires a wider zigzag width up to 11 mm.
Choose LZ-20U63D
When you require an 11 mm zigzag width together with direct drive.
Choose LZ-30U53
When 9 mm zigzag width is sufficient but a larger bobbin capacity is preferred for longer continuous sewing.
Choose LZ-30U53D
When both the large-hook configuration and direct drive are required.
Quick Model Selection
| Requirement | Recommended Model |
|---|---|
| General 9 mm zigzag | 20U53 |
| 9 mm + direct drive | 20U53D |
| Wider 11 mm zigzag | 20U63 |
| 11 mm + direct drive | 20U63D |
| 9 mm + larger bobbin capacity | 30U53 |
| Large hook + direct drive | 30U53D |
FAQ
What is the LZ-20U53 / 20U63 / 30U53 series?
It is a series of medium-speed industrial zigzag lockstitch sewing machines designed for straight stitching, standard zigzag and decorative sewing.
What is the difference between LZ-20U53 and LZ-20U63?
The main difference is the maximum zigzag width. The LZ-20U53 provides up to 9 mm, while the LZ-20U63 provides up to 11 mm.
What is the difference between LZ-20U53 and LZ-30U53?
Both are 9 mm zigzag models. The LZ-30U53 uses a larger hook and bobbin system, providing greater bobbin-thread capacity.
Is there an LZ-30U63 model?
No. The current series does not include a 30U63 large-hook version. The 11 mm configuration is available as LZ-20U63 / LZ-20U63D.
What does "D" mean in the model number?
The suffix D means Direct Drive.
Can these machines sew straight stitches?
Yes. The machines can be adjusted for straight lockstitch sewing as well as zigzag sewing.
What is the maximum zigzag width?
The LZ-20U53 and LZ-30U53 series provide up to 9 mm, while the LZ-20U63 series provides up to 11 mm.
Why choose a large-hook zigzag sewing machine?
A larger hook uses a larger bobbin, increasing bobbin-thread capacity and reducing the frequency of bobbin changes during longer sewing operations.
Can the needle position be adjusted?
Yes. The needle position can be adjusted to the left, center or right.
Can the machine be used for embroidery?
The machine can perform selected decorative and embroidery-style zigzag sewing, but it is not a computerized embroidery machine.
Is this a heavy-duty zigzag sewing machine?
This series is primarily intended for general light- to medium-weight and selected medium-weight sewing. For sails, heavy canvas, tarpaulins and extra-heavy materials, a dedicated heavy-duty zigzag sewing machine should be selected.
