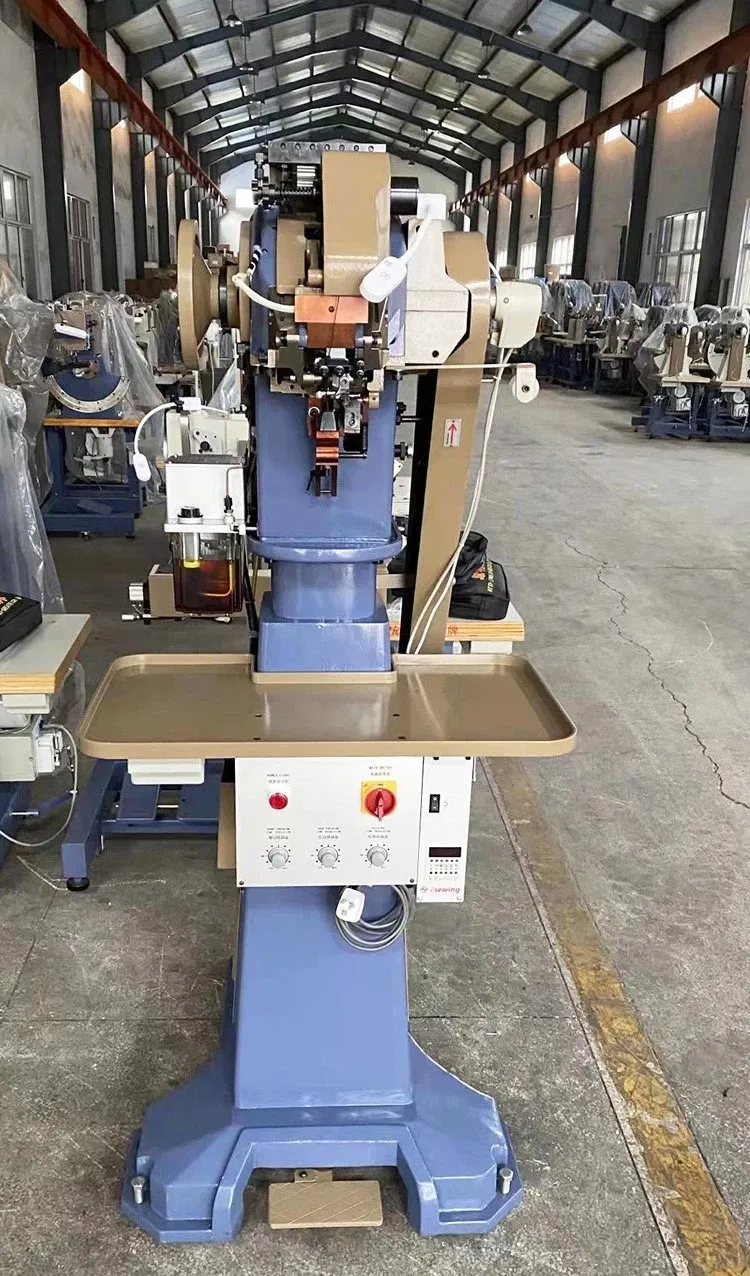

TSH-2619 Goodyear Welt Inseam Chainstitch Sewing Machine

The TOPEAGLE TSH-2619 is a specialized industrial sewing machine designed for the Goodyear welt inseam stitching process.

It joins the welt, lasted upper and insole rib to form the internal inseam of Goodyear-welted footwear.

Using a coordinated needle-and-awl mechanism, the machine penetrates the assembled shoe components and forms a strong chainstitch along the welt. Its electronic speed-control system allows operators to adjust sewing speed smoothly when working around the toe, waist and heel sections of the shoe.

Key Features

1. Specialized Goodyear Welt Inseam Stitching

Designed specifically for joining the welt, lasted upper and insole rib during Goodyear-welted shoe production.

2. Needle-and-Awl Stitching Mechanism

The awl prepares the material penetration point before the sewing needle and thread-forming mechanism complete the chainstitch.

This coordinated mechanism is suitable for the thick and shaped components used in welted footwear.

3. Strong Chainstitch Formation

Produces a single-thread chainstitch for securing the welt to the lasted upper and insole rib.

4. Stepless Electronic Speed Control

The electronic control system provides smooth sewing-speed adjustment, allowing operators to control stitching around curved shoe sections.

5. Computer-Controlled Needle Positioning

The needle-positioning function helps improve operating convenience and control during sewing.

6. Automatic Lubrication System

The automatic lubrication system supplies oil to relevant machine components to support stable operation and reduce routine manual lubrication.

7. Flexible Welt Guide Options

Different welt guides can be supplied according to welt width, profile and material.

8. Suitable for Leather and Synthetic Welts

Designed to work with leather and synthetic welt materials used in different Goodyear-welted footwear constructions.

Technical Specifications

Typical Applications

The TSH-2619 is designed for the inseam stitching operation in Goodyear-welted footwear manufacturing.

Typical applications include:

Goodyear-welted dress shoes

Men's leather business shoes

Oxford and Derby shoes

Leather boots

Work and safety boots with Goodyear welt construction

Premium leather footwear

Footwear using leather or synthetic welts

Position in the Goodyear Welt Production Process

The TSH-2619 performs the inseam stitching operation, connecting the welt, lasted upper and insole rib.

It is different from an outsole stitching machine, which performs the subsequent operation of attaching the outsole to the welt.

For a typical Goodyear welt production process:

Insole rib preparation and attachment

Upper lasting and side stapling

Welt inseam stitching – TSH-2619

Welt trimming and bottom preparation

Outsole stitching – TSH-2368/2

Finishing operations

Frequently Asked Questions

Q1. What is the TSH-2619 used for?

The TSH-2619 is designed to stitch the welt, lasted upper and insole rib together during Goodyear-welted footwear production.

Q2. Is the TSH-2619 an outsole stitching machine?

No. The TSH-2619 performs the inseam stitching operation. A separate outsole stitching machine is used to attach the outsole to the welt.

Q3. What type of stitch does the machine produce?

It produces a single-thread chainstitch using a coordinated needle-and-awl stitching mechanism.

Q4. What is the adjustable stitch length?

The specified stitch length range is 4–12 mm.

Q5. What sewing thickness can the machine handle?

The specified sewing thickness range is 3–8 mm.

Q6. What welt materials can be used?

The machine is designed for leather and synthetic welt materials. Different welt guides can be selected according to the material and welt profile.

Q7. Does the machine have automatic lubrication?

Yes. The TSH-2619 is equipped with an automatic lubrication system.

Q8. What information should customers provide before ordering?

Customers should provide shoe construction details, welt width and material, insole-rib specifications, thread requirements and shoe samples or photos where possible.

Request a Quotation

Looking for a specialized Goodyear welt inseam stitching machine for leather shoe or boot production?

TOPEAGLE supplies industrial footwear sewing machines and provides application-based machine selection support.

Please share your:

Shoe construction and shoe style

Welt material and width

Insole-rib specifications

Required stitch length

Sewing thread specification

Required quantity

Destination country

Our team can help evaluate the appropriate machine configuration.

Contact TOPEAGLE for technical information and a quotation.

Related products:

goodyear welt stitching machine, goodyear welt inseam stitching machine, goodyear inseam stitcher, welt sewing machine, shoe welt stitching machine, shoe inseam stitching machine, goodyear shoe making machine. chainstitch welt sewing machine, welted shoe production machine, industrial shoe sewing machine, shoe welt sewing equipment, leather shoe welt machine, footwear inseam stitching machine, TSH-2619 sewing machine, Goodyear shoes welt sewing machine, Goodyear shoes sewing machine, Goodyear welt sewing machine, Goodyear inseam stitching machine, Goodyear inseam stitcher, ballet shoe sewing machine, dance shoes sewing machine, pointe shoe stitching machine, dance shoe stitching machine

FAQ

What does a Goodyear welt inseam stitching machine do?

It stitches the welt to the lasted upper and insole rib, creating the internal inseam used in Goodyear-welted footwear construction.

Is the TSH-2619 an outsole stitching machine?

No. The TSH-2619 performs the inseam operation. An outsole stitching machine performs a later process that attaches the outsole to the welt.

Is the TSH-2619 a double-needle machine?

It does not produce two parallel rows of stitching. The machine uses one sewing needle together with an awl to penetrate the shoe components and form a single-thread chainstitch.

What stitch does the machine produce?

It produces a single-thread chainstitch designed for the inseam of welted footwear.

What is the adjustable stitch length?

The recommended published specification is 4–12 mm. The final range should be confirmed according to the current machine configuration.

What materials can the machine sew?

It can work with leather or synthetic welts and footwear components with a total sewing thickness of approximately 3–8 mm.

Can different welt sizes be used?

Yes. Different welt guides can be supplied according to the welt width, profile and material.

Can it be used for ballet or dance shoes?

Special applications may require a dedicated guide or machine configuration. Customers should provide the shoe sample and seam requirement before ordering.

Does the machine have automatic lubrication?

Yes. The machine uses a fully automatic lubrication system.

What information should be provided before ordering?

Customers should provide:

Finished shoe photos

Shoe construction details

Welt material and width

Insole-rib dimensions

Thread specification

Required stitch length

Power supply

Production capacity

A shoe or material sample when possible
