Short Description

The TSH-2620 is a specialized staple side lasting machine for Goodyear-welted footwear production. It uses adjustable pincers to pull the upper and lining tightly over the last and secures them to the insole rib with staples formed directly from a continuous steel-wire coil. This process prepares the lasted shoe for subsequent welt inseam stitching.

---

Product Overview

TSH-2620 Goodyear Welt Staple Side Lasting Machine

The TOPEAGLE TSH-2620 is a specialized staple side lasting machine used in the production of Goodyear-welted shoes and boots. It is designed to pull the upper and lining tightly over the shoe last and temporarily secure them to the insole rib before the welt inseam stitching operation.

During operation, the adjustable pincer mechanism grips the upper and lining and helps the operator apply controlled tension toward the bottom of the last. The machine then forms staples directly from a continuous roll of thin steel wire and drives them into the insole rib, holding the lasted materials firmly in position.

The thin wire helps retain the flexibility of the shoe construction and minimizes interference with the subsequent inseaming process. After the side-lasting operation is completed, the welt, upper and insole rib can be joined using a dedicated Goodyear welt inseam stitching machine.

The electronically controlled drive provides adjustable stapling speed and controlled stopping, allowing the operator to work carefully around different sections of the shoe. The TSH-2620 is suitable for professional production of welted leather shoes, dress shoes, work boots and other footwear using an insole-rib construction.

---

Key Features

Specialized for Goodyear welt staple side lasting

Pulls the upper and lining tightly over the shoe last

Secures the lasted upper to the insole rib

Adjustable pincer mechanism for controlled material tension

Forms staples directly from a continuous steel-wire coil

Uses thin 0.6 mm steel wire

Standard staple shank length of 9 mm

Stapling thickness from 3 to 13 mm

Adjustable operating speed

Stapling speed of 200–300 staples per minute

Electronically controlled drive system

Controlled stopping for accurate operation

Helps prepare the shoe for subsequent welt inseam stitching

Suitable for leather shoes, welted boots and heavy footwear

Designed for professional Goodyear-welted footwear production

---

Main Applications

The TSH-2620 is suitable for the side-lasting and stapling of:

Goodyear-welted dress shoes

Leather business shoes

Welted boots

Heavy work boots

Safety footwear

Classic leather footwear

High-grade welted shoes

Footwear using an insole rib

Other welted shoe constructions requiring temporary staple fastening

对于特殊鞋型,建议客户提供鞋样,鞋楦和内底肋结构进行确认.

---

How the TSH-2620 Works

Staple Side Lasting Process

The prepared upper and lining are positioned over the shoe last.

The adjustable pincers grip the material.

The operator pulls the upper and lining tightly toward the insole rib.

The machine forms a staple from the continuous wire coil.

The staple is driven and clenched into the insole rib.

The operation is repeated around the side area of the shoe.

The lasted shoe is then prepared for Goodyear welt inseam stitching.

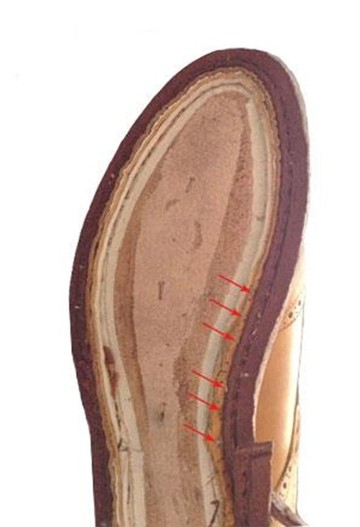

The staples provide temporary and secure positioning while allowing the later inseam stitching operation to be completed around the shoe.

---

Technical Specifications

Model	TSH-2620
Machine type	Goodyear welt staple side lasting machine
Main operation	Securing the lasted upper and lining to the insole rib
Staple supply	Staples formed from a continuous steel-wire coil
Stapling speed	200–300 staples/min
Staple shank length	9 mm
Stapling thickness	3–13 mm
Steel wire diameter	0.6 mm
Drive system	Electronically controlled variable-speed motor
Motor power	750 W
Power supply	220 V, single phase, 50–60 Hz
Net weight	308 kg
Export packing gross weight	394 kg
Export packing size	970 × 1030 × 1780 mm

Product Advantages

Accurate Side Lasting

The adjustable pincer mechanism helps the operator pull the upper and lining firmly and consistently against the insole rib.

Automatic Wire-Staple Formation

The machine forms staples directly from a continuous wire coil, eliminating the need to load preformed staples individually.

Preparation for Welt Inseaming

The staples securely hold the upper and lining in position before the welt, upper and insole rib are joined by the inseam stitching machine.

Thin-Wire Construction

The 0.6 mm steel wire provides secure temporary fastening while helping preserve flexibility around the shoe bottom.

Controlled Operation

The adjustable-speed electronic drive gives the operator better control when working around curved and differently shaped areas of the lasted shoe.

Suitable for Professional Welted Footwear

The TSH-2620 is designed for footwear factories and shoemaking workshops producing dress shoes, boots and other Goodyear-welted footwear.

---

Position in the Goodyear Welt Production Process

Model	Production Operation
TSH-2620	Pulls and staples the upper and lining to the insole rib during side lasting
TSH-2619	Stitches the welt, lasted upper and insole rib together
TSH-2368/2	Stitches the outsole to the welt

The TSH-2620 performs the staple side lasting operation before inseam stitching. It works together with the TSH-2619 Goodyear welt inseam stitching machine and the TSH-2368/2 outsole stitching machine to support the main sewing and assembly processes of welted footwear production.

---

Goodyear welt staple side lasting machine, staple side lasting machine, Goodyear welt stapling machine, Goodyear shoe lasting machine, wire staple lasting machine, shoe upper stapling machine, insole rib stapling machine, shoe side lasting machine, upper lasting machine, footwear lasting machine, stapling machine for welted shoes, Goodyear welt shoe machine, shoe making lasting equipment,, welted shoe production machine

TSH-2620



Related products:

TSH-2368/2 Goodyear Welt Outsole Stitching Machine

TSH-2619 Goodyear Welt Inseam Stitching Machine



---

FAQ

What is a Goodyear welt staple side lasting machine?

A Goodyear welt staple side lasting machine pulls the upper and lining tightly over the shoe last and fastens them to the insole rib with thin wire staples. It prepares the lasted shoe for the subsequent welt inseam stitching operation.

Does the TSH-2620 sew the welt?

No. The TSH-2620 is a stapling and lasting machine, not a sewing machine. It temporarily secures the upper and lining to the insole rib before a separate inseam stitching machine attaches the welt.

At what stage is the TSH-2620 used?

It is used during the side-lasting stage, before Goodyear welt inseam stitching. After the upper has been secured to the insole rib, the welt can be stitched using an inseam stitcher.

How are the staples supplied?

The TSH-2620 forms staples directly from a continuous roll of steel wire. The operator does not need to load individual preformed staples.

What steel-wire diameter does the machine use?

The published specification is 0.6 mm. The correct wire specification should be confirmed when ordering replacement wire.

What is the staple shank length?

The standard published staple shank length is 9 mm.

What is the applicable stapling thickness?

The published stapling-thickness range is 3–13 mm. Actual suitability depends on the upper material, lining, insole-rib structure and total assembly thickness.

What is the function of the adjustable pincers?

The pincers grip the upper and lining and help the operator pull them tightly and evenly against the insole rib before each staple is applied.

Do the staples interfere with the welt inseam stitching?

The machine uses thin wire intended to hold the materials securely while minimizing interference with the later inseaming operation. Correct wire, staple position and machine adjustment remain important.

What is the difference between TSH-2620 and TSH-2619?

The TSH-2620 secures the upper and lining to the insole rib with staples. The TSH-2619 subsequently stitches the welt, upper and insole rib together with an inseam chainstitch.

Is the TSH-2620 suitable for all shoe constructions?

It is intended primarily for Goodyear-welted footwear with an insole-rib construction. Customers producing non-standard footwear should provide shoe samples and construction details before ordering.

What information should be provided before ordering?

Customers should provide:

Shoe construction

Shoe-last size range

Upper and lining materials

Insole-rib dimensions

Total stapling thickness

Required staple position

Steel-wire specification

Production requirements

Power supply

A lasted shoe sample when possible
