360 Rotary Arm Sewing Machine

Name: 360 Rotary Arm Sewing Machine
Brand: TOPEAGLE
SKU: 231156646

1.Machine name:360 Rotary Arm Sewing Machine
2.Machine model: TFR-15360-M7
3. Brand: TOPEAGLE
4.Max.sewing speed:1600rpm
5.Needle bar stroke:36mm
6.Presser foot lift:9-16mm
7.Sewing thread:200D*3
8.Stitch length:6mm
9.Needle:DP*17 16-22#
10.Machine head size: 910*910*600mm

Send Inquiry

TOPEAGLE TFR-15360-M7 360 Rotary Arm Sewing Machine Feature:

Adopting a unique 360,rotation design, making 360°rotation easy and effortless.The use of comprehensive feeding, sewing thick and thin objects are smooth, sewing effect is good.
The Operating Space ls Spacious, With Flexible Rotation And Even And Beautiful Stitching.
The needle spacing can be adjusted according to the actual need of sewing.
Equipped with steam moving up and down and pneumatic reverse stitching.

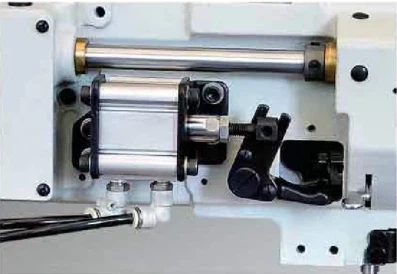

1714119314475

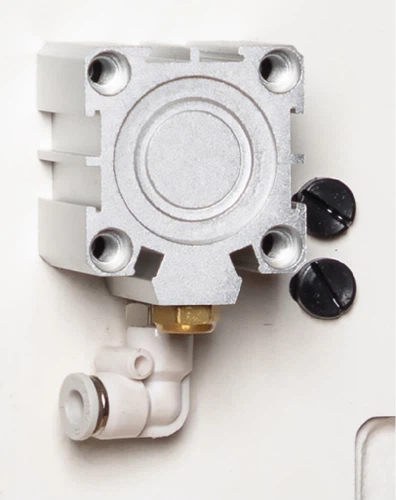

1714119338989

TOPEAGLE TFR-15360-M7 360 Rotary Arm Sewing Machine Application:

TOPEAGLE TFR-15360-M7 360° rotary arm sewing machine suitable for the inner sewing process of medium and heavy leather products, handbags, travel bags, document bags, shoes, etc.

1714121694464

1714121587089

1714121646904

TOPEAGLE TFR-15360-M7 360 Rotary Arm Sewing Machine Technical data:

Model	TFR-15360-M7
Max.sewing speed	1600rpm
Needle	DP*17 16-22#
Needle bar stroke	36mm
Presser foot lift	9-16mm
Stitch length	6mm
Sewing thread	200D*3
Operating space	230*230mm
Thread stitch	301
Machine head size	910910600mm
Net weight	95kgs
Gross weight	105kgs
