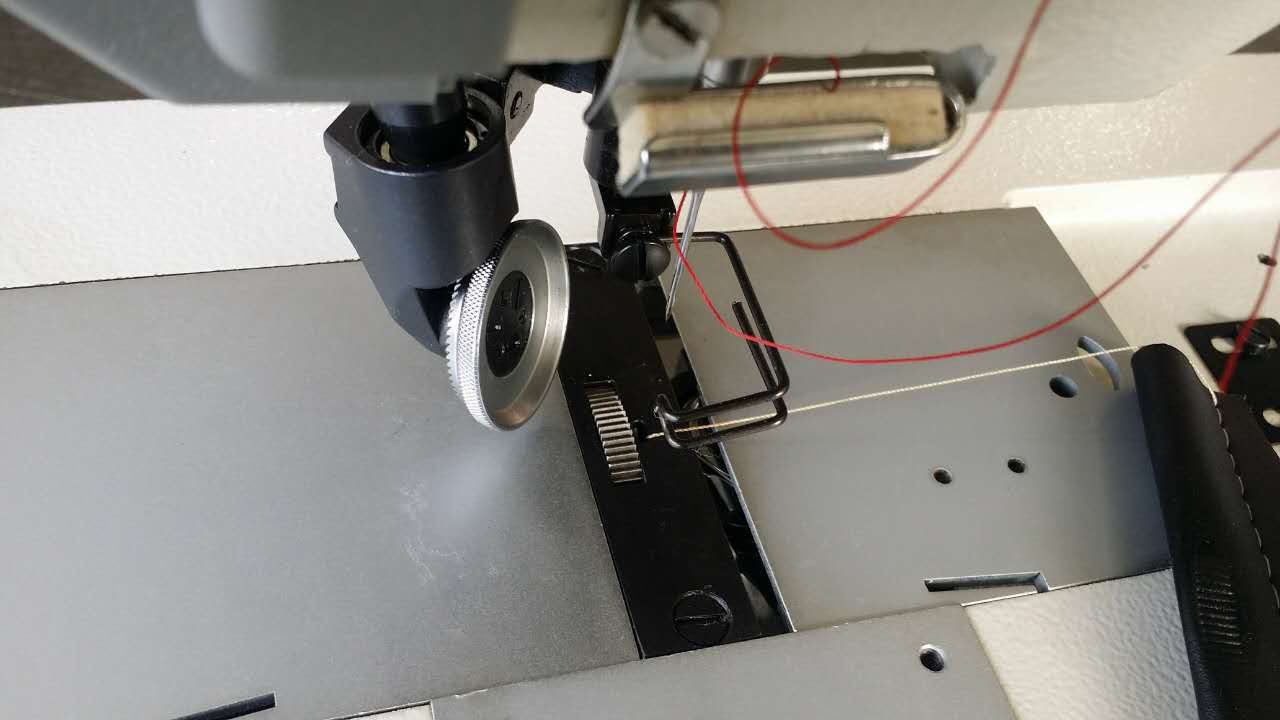

Roller feed sewing machine

Roller feed sewing machine

1. The sewing machine adopt bottom roller feed,driven wheel feed, needle feed mechanism.
2. Suitable for sewing high quality lockstitch seam and ornamental sewing on the high quality leather, nylon or other heavy fabrics fabrics, such as shoes, hand bag, upholstery, canvas, tarps, denim, etc.

Send Inquiry

Features:

1. Roller feed sewing machine adopts drop roller and upper wheel feed mechanism, driving wheel presser foot feed guarantees problem-free top-stitching of seam intersection without any change of stitch length.

2. It can be adjustable for sewing size.

3. Maintenance-free ball and needle bearings and link take-up lever.

4. Applied full-revolution vertical rotary hook with positive bobbin case opener.

5. Equipped with easy-operating safety clutch which would protect rotating hook from damage.

6. Roller feed sewing machine has the beautiful and novel appearance,steady head leads to smooth operation.


Wheel feed sewing machine

Applications:

Roller feed sewing machine is suitable for high quality lockstitch seam and ornamental sewing on the high quality leather, nylon or other heavy fabrics fabrics, such as shoes, hand bag, upholstery, canvas, tarps, denim, etc.


Model:

TCF-1243 Flat bed Lower Roller feed Driven Wheel Presser Foot Needle Feed Lockstitch Sewing Machine


Specifications:

Model

TCF-1243

Needle system

DPx17 13#-18#

Max.stitch length

7mm

Presser foot lift height

By hand:7mm By knee:14mm

Needle bar stroke

36mm

Driving wheel dia

32mm

Hook

Standard

Motor

Clutch motor, 400w

Lubricating mode

Semi-automatic lubricating system

Max.sewing speed

2500rpm

Working space

250*110mm

Gross/Net weight

53/48kgs

Packing size

70x35X67cm
